MP653 XC
Super Wide Area Commercial Rotary Mower

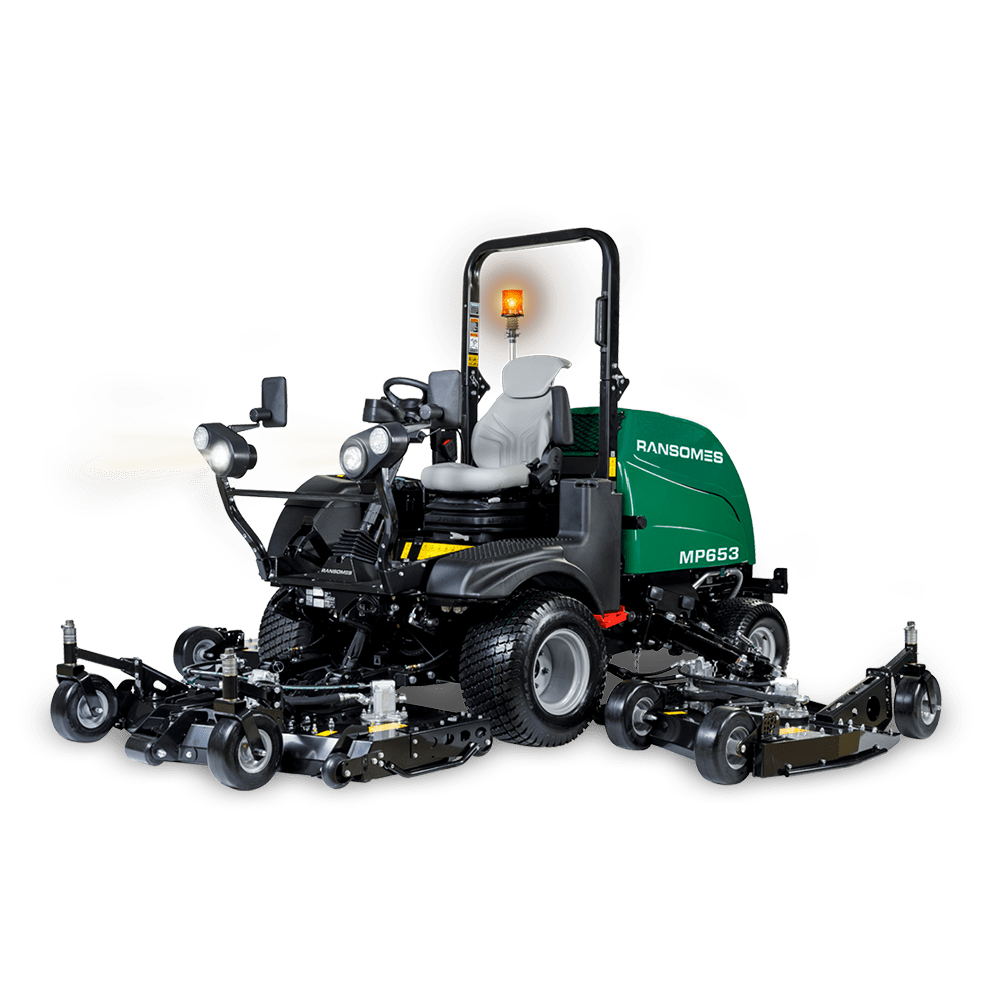

The MP653 XC has Ransomes' widest width of cut in a clean, compliant Stage V package. Our super-productive batwing rotary mower works hard, quickly and safely. Its light-weight, high-strength steel design is robust, tough and road-ready and ergonomically designed for people who mow.
Find out why the municipality of Apeldoorn in the Netherlands believes the MP653 XC Commercial Rotary Mower is perfect for their requirements.
Watch
Video
Key Features
Sheet
4.26m; Ransomes® Widest Width of Cut
Tilt Sensor Technology Warns of Unsafe Working Angle
Lightweight, High Strength Steel Design & Powerful Stage V Engine
Narrow Transport Width & Low Weight For Towing
Technical Specs
Choose a Section
Key Attributes
Rotary Decks
Traction, Breaks & Speed
Weight & Dimensions
Key Attributes
Rotary Decks
Traction, Breaks & Speed
Weight & Dimensions
| Cutting Width | 4.26 m (168") |
| Height of Cut | 25 - 144 mm in 12.7 mm increments (1.0 - 4.5 " in 0.5" increments) |
| Cutting Capacity | 4.61 ha/hr x 12.0 km/h (11.4 acre/hour x 7.5 mph) |
| Rotary Decks | Batwing rotary mower with independent front and high capacity wing units all with direct hydraulic drive motors |
| Fuel Capacity | 77.1 L (20.4 gal) |
| Powertrain | Turbo Diesel |
| Engine | Kubota V2403 4-cylinder, turbo diesel 48.6 kW (65.2 hp) with reversible cooling fan |
| Battery | - |
| Engine Emissions | EU Stage V - (EPA Tier 4 Final) Compliant |
| Operator Station | ISO mounted operator platform complete with a full suspension, high back seat as standard. Control console with full colour display for key in-work information, diagnostics and machine settings. |
| Safety & Road Options | Halogen / LED Road lighting kit, Amber warning beacon, Tilt Sensor Technology (TST), air suspension seat, Front equipment carry cage, puncture resistant tyres, Air-conditioned cabin with heater, noise reducing interior, high visibility heated front screen |
| Certification | BSI approved: ISO 9001, ISO 14001, ISO 45001. Manufactured In UK. |
| Warranty | 2 Years |
| Number and Size | 1 x 1.52 m (60") front deck; 2 x 1.52 m wing decks (1 x 60" front deck; Two 60" wing decks) |
| Cutting Unit Construction | Bull nose profile, high strength steel construction. Solid bumper rails, bolted assembly of all impact and serviceable parts |
| Cutting Unit Controls | Fingertip operated joysticks for individual unit lift/lower; cross cut position. Electronic transport locks. |
| Traction System | Hydrostatic, automatic on-demand cross-flow 4 wheel drive in forward and on demand in reverse |
| Cutting Unit Drive | 9 x individual hydraulic motors with self lubricating integral bearings |
| Hydraulic System | 50.2 L (13.3 gal) capacity regulated with side by side cooler |
| Service Braking | Dynamic braking through Hydrostatic traction system |
| Parking Brakes | Zero-maintenance electro-hydraulic wet parking brakes |
| Steering | Hydraulic power steering with adjustable tilt steering wheel |
| Mowing Speed | 16.4 km/h (10 mph) |
| Transport Speed | 25 km/h (15 mph) |
| Weight | Standard: 1825 kg // Cab Unit: 2032 kg with Cab (Standard: 4023 lbs // Cab Unit: 4479 lbs with Cab) |
| Length | 3.62 m (143") |
| Height | 2.11 m with ROPS // 2.2 m with Cab; 2.34 m decks up in transport (83" with ROPS // 87" with Cab; 92" decks up in transport) |
| Wheel Base | 1.65 m (65") |
| Transport Width | 1.67 m at 50 mm height of cut (66" at 2" height of cut) |
| Working Width | 4.48 m (176") with cutting decks down |
Specifications, while correct at time of publishing, may change without notice. Requires Ultra Low Sulphur Diesel. Cutting Capacity 10% allowance for overlap.
